EXTERIOR

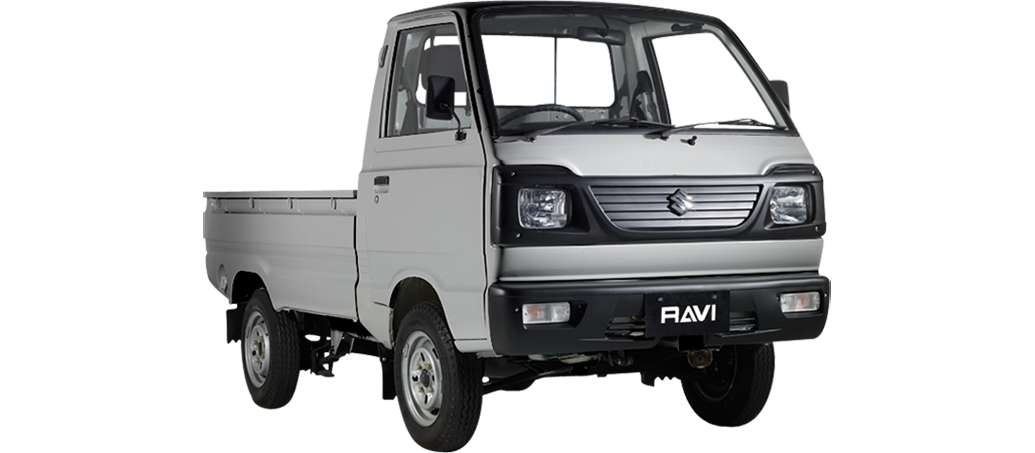

The exterior of the Suzuki Ravi has deck with one side opening and is fairly designed for loading purpose
INTERIOR
A Light commercial vehicle with seating capacity of 2 persons at front and a deck for loading purpose at the back
PERFORMANCE
A Light commercial vehicle with high standard performance Euro-II engine in low fuel consumption and inexpensive maintenance
| DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Overall length (mm)
|
3,234 |
||||||||||
|
Overall width (mm)
|
1,395
|
||||||||||
|
Overall height (mm)
|
1,650 |
||||||||||
|
Wheelbase (mm)
|
2,450 |
||||||||||
|
Minimum turning radius (m)
|
4.1
|
||||||||||
|
Load Deck Size, length (mm)
|
1940
|
||||||||||
|
Load Deck Size, width (mm)
|
1320 |
||||||||||
|
Load Deck Size, height (mm)
|
290 |
||||||||||
| ENGINE | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Engine type
|
Water cooled OHC & EFI
|
||||||||||||
|
Displacement (cc)
|
796
|
||||||||||||
|
Bore x stroke (mm)
|
68.5 x 72
|
||||||||||||
|
Max output (kW/rpm)
|
27.5/5000
|
||||||||||||
|
Max torque (Nm/rpm)
|
62/3000
|
||||||||||||
| CAPACITY | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Fuel tank capacity
|
36 (L)
|
||||||||||
|
Loading capacity
|
600 Kg
|
||||||||||
|
Seating capacity
|
2 |
||||||||||
| TRANSMISSION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Drive system
|
2WD
|
||||||||||
|
Transmission
|
4-forward all synchromesh, 1 reverse
|
||||||||||
| SUSPENSION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Front brake
|
Drum |
||||||||||
|
Rear brake
|
Drum |
||||||||||
|
Suspension front
|
strut
|
||||||||||
|
Suspension rear
|
Leaf Spring
|
||||||||||
|
Tyres
|
4.5 - 12
|
||||||||||
Powerful EFI Engine with Low Maintenance
The water-cooled EFI engine provide the minimum losses and maximum power output, The 796cc water-cooled engine provide an optimum fuel economy for the daily commute, Due to large dealership network and maximum parts localization, Suzuki offer low maintenance cost for the Ravi users
Competitive Loading Capacity and Deck Size
Suzuki Ravi offers a competitive loading capacity of around 600kg and reasonably good size one side opening deck designed for heavy loading
Suzuki Swift
| Variant | Price | Filer | Non-Filer |
|---|---|---|---|
|
STD |
PKR 1,975,560 |
PKR 9,878 |
PKR 29,633
|
|
w/o Deck |
PKR 1,899,810
|
|
|
|
|
|
|
Prices effective from : July 01, 2025
*Accessories are not included in the standard model
